PU Flat Transmission Belt Low Compression Set industry machines

Name: PU Flat Transmission Belt Low Compression Set industry machines
Brand: Jiuna
Price: 1 USD

China PU Flat Transmission Belt Low Compression Set industry machines wholesale

Brand Name : Jiuna

Model Number : A-13 / B-17 / C-22

Certification : ROHS

Place of Origin : China

MOQ : 600 Meter

Payment Terms : T/T, 50% payment in advance ,50% balance before shipment

Supply Ability : 96.000 meters per Month

Delivery Time : Within 5 working days After receipt of your deposit

Packaging Details : Inner packing is plastic film .outer packing is carton

export port : shanghai

Factory : Wuxi city

Main function : Transmission Belt

Hardness : 90 shore A

Material : PU

Length : 30 meter /rolls

Test Method : DIN standard

Type : V-belt

Contact Now

PU Flat Transmission Belt Low Compression Set industry machines

PU V-Belt Application :

Widely used in textile

printing and packing machine

paper processing

electronic

Product Technical Parameters :

Specification	X(mm)	H(mm)	Z(mm)	M/rolls	reinforced	arabesquitic
A	13	8	3.5	30	·	·
B	17	11	3.5	30	·	·
C	22	14	3.5	30	·	·
D	32	19	3.5	30	·	·
M	8	4		50
Z	10	5	3.5	50	·	·

Characteristics for PU V-section belt

excellent elasticity and damping characteristics

High tensile strength

With smooth surface v-belts

Color :red ,white

Hardness 90 shore A

Available with or without reinforced cord .

Replacement for conventional rubber V-belts , but more wear-resisting and can welding.

Products introduction

In addition , We are able to tailor Round and V-belts of different lengths and diameters - within a few

days and with high quality.

Product Tags:

green round belt

pu extruded belt

smooth pu flat transmission belt

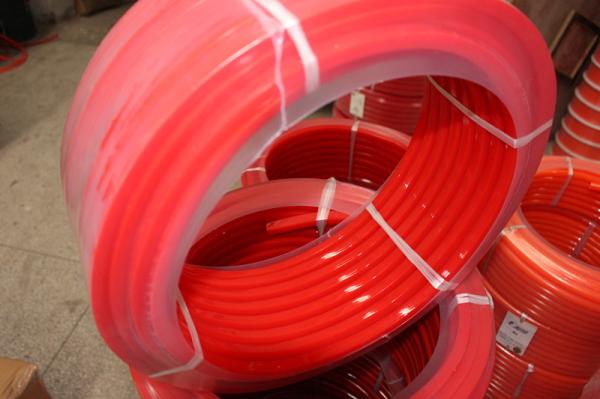

PU Flat Transmission Belt Low Compression Set industry machines Images
