Place of Origin : China
Brand Name : Jiuna
Certification : ROHS
Model Number : A-13 / B-17 / C-22
MOQ : 600 Meter
Packaging Details : Inner packing is plastic film .outer packing is carton
Delivery Time : Within 7 working days After receipt of your deposit
Payment Terms : T/T, 50% payment in advance ,50% balance before shipment, T/T, Western Union
Supply Ability : 90.000 meters per Month
export port : shanghai port
Factory : Wuxi city
Hardness : 90 shore A
Length : 30 meter /rolls
material : PU
color : any color
Stretching Rate : 1.5%-3%
specification : A B C D M Z
Ceramic Industrial Red Polyurethane V Section Drive Belt for Conveyor
PU V-Belt Application :
1. Widely used in textile
2. printing and packing machine
3. food & beverage processing
4. wood processing
5. paper processing
6. electronic
Product Technical Parameters :
Specification | X(mm) | H(mm) | Z(mm) | M/rolls | reinforced | arabesquitic |
A | 13 mm | 8 mm | 3.5mm | 30m | ·- | ·- |
B | 17 mm | 11 mm | 3.5mm | 30m | ·- | ·- |
C | 22 mm | 14 mm | 3.5mm | 30m | ·- | ·- |
D | 32 mm | 19 mm | 3.5mm | 30m | ·- | ·- |
M | 8 mm | 4 mm |
| 50m | - | - |
Z | 10 mm | 5 mm | 3.5mm | 50m | ·- | ·- |
Characteristics for PU V-section belt
1.excellent elasticity and damping characteristics
2.High tensile strength
3.With smooth surface v-belts
4.Color :red ,white
5.Hardness 90 shore A
6.Available with or without reinforced cord .
7.Replacement for conventional rubber V-belts , but more wear-resisting and can welding.
Products introduction
In addition , We are able to tailor Round and V-belts of different lengths and diameters - within a few days and with high quality.
![]() |

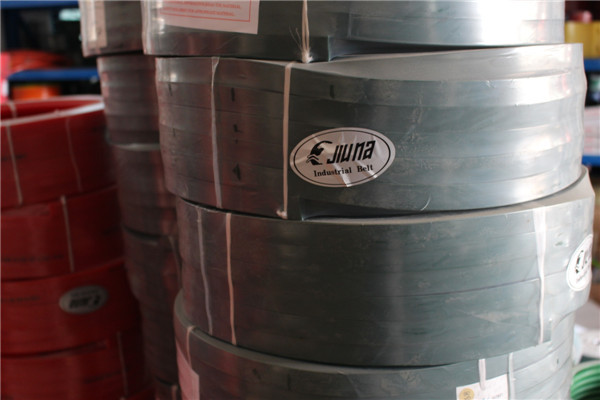

HighTensile And Tear Strength Red Polyurethane V Belt for Conveyor Floor And Roof Tiles Conveying Images |
