Brand Name : jiuna
Model Number : A-13 B-17 C-22
Certification : ROHS
Place of Origin : china
MOQ : 10 rolls
Payment Terms : T/T, 50% payment in advance ,50% balance before shipment
Supply Ability : 96,000,00 mester per month
Delivery Time : Within 5 working days After receipt of your deposit
Packaging Details : Inner packing is plastic film .outer packing is carton
material : Polyurethane
hardness : 85A-90A
test : DIN standard
Main function : Drive transmission
Size range : Type A B C D
color : Red Green color.
Packing Industry PU extruded belt Corrugated High Temperature Resistant
Features:
1. Outstanding abrasion resistance
2. High tensile and tear strength
3. Resistance to oils, fuels,and oxygen
4. Good weatherability and high impact resistance
5. Low compression set
Application:
(1). Newspaper conveying,
(2) Packing machines,
(3) Ceramic and stoneware processing plants,
(4) Floor and roof tiles conveying,
(5) Wood Working machineries,
(6) Textile machines,
(7) Paper industry machines,
(8) Food grading machines, other food processing machines.
Product Technical Parameters :
Specification | X(mm) | H(mm) | Hardness (Shore A) | M/rolls | Reinforced |
---|---|---|---|---|---|
A | 13 | 8 | 90A | 30m | · |
B | 17 | 11 | 90A | 30m | · |
C | 22 | 14 | 90A | 30m | · |
D | 32 | 19 | 90A | 30m | · |
M | 8 | 4 | 90A | 50m |
|
Z | 10 | 5 | 90A | 50m | · |
![]() |

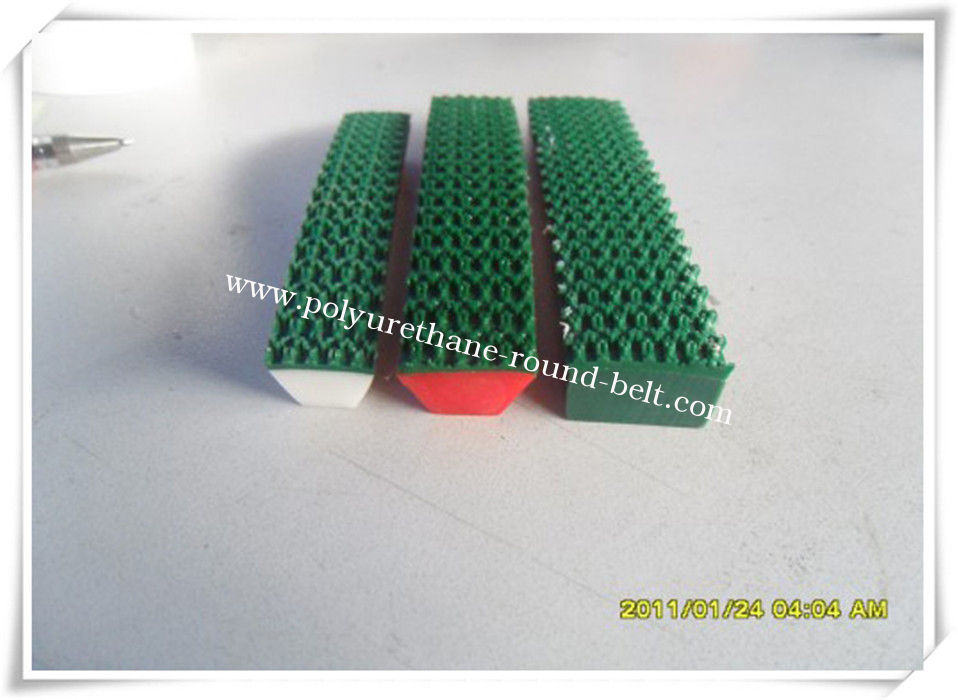

Packing Industry PU extruded belt Corrugated High Temperature Resistant Images |
