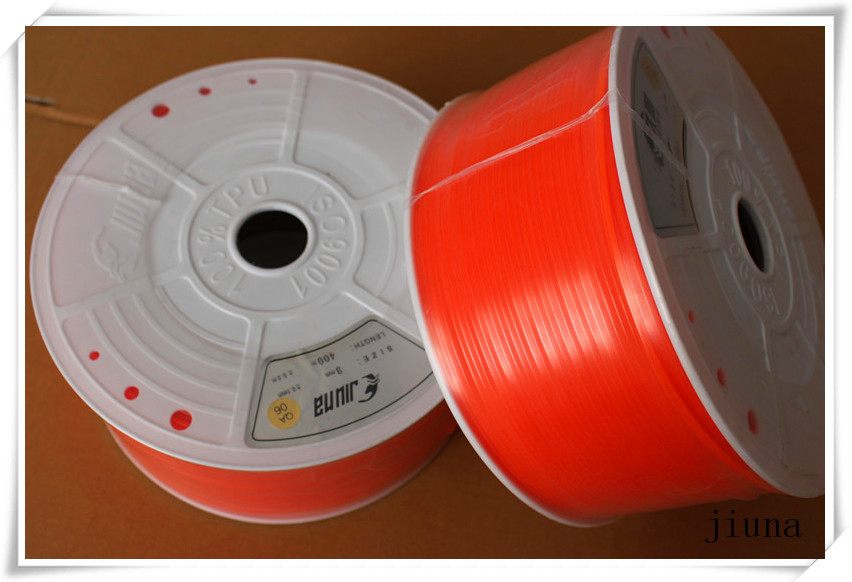

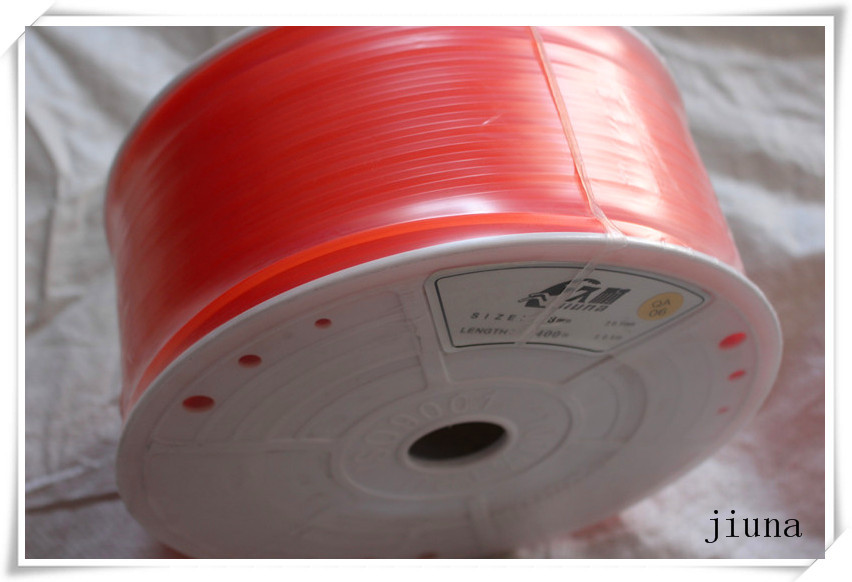

Abrasion Resistant Polyurethane Belts Textile And Glass 400 M / Roll
Smooth Surface Urethane Round Belting Rohs Approved , Low Compression
Widely used in textiy
printing and packing machine,food & beverage processing, wood processing , paper processing electronic post service tobacco transmission line
Wall floor tile conveying industrial line
Ceramic industry line or polishing line
We supply different kinds of PU V-belt, Round belt, Surper grip belt & Pentagon
Color: Orange, Red, Dark Green, Ivory, Natural .
- Shore Hardness: Round belt - 87°A ± 2 .
- Rough surface: Normal Rough / More Rough .
- Steel, Glass & Aramid Reinforcement on request.
- Easily jointed with BCTech's Welding Kits
- Features:
- High tensile and tear strength
- High abrasion resistance
- Resistant to oil, grease, dust, moisture & most chemicals
- Temperature Range: -35 ~ 85 Degrees
The types of TPU V-Belt:
Glossy surface round belt, rough surface round belt, v-belt, pentaone belt, hexagonal belt,
heptagonal belt, supper-grip belt, T belt, perallel belt.
Applications:
Mainly used in transmission and distribution products for the textile, clothing, food, packaging, printing, machinery, electronic, glass, chemicals, automobiles, beverages, furniture, toys, paper and other industries; Especially in the ceramic industry, widely used in the glazing Lines, transmission lines, polishing line etc.
Normal specifications including Z, M, A, B, C, D and the Pentangular Belt including A, B, C type, pentagonal belt normally used in the production line's corner.
| Items No. φ | least radius of gyration | stretch rate | Maximum tensile rate | Hardness | length of rolled | | Dia. (mm) | In | mm | Stretching rate | Kg | Lbs | Hardness (A) | Roll (m) | | 2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 90A | 400 | | 3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90A | 400 | | 4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 85A | 200 | | 15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 85A | 30 | | 18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 85A | 30 | | 20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 85A | 30 | |
