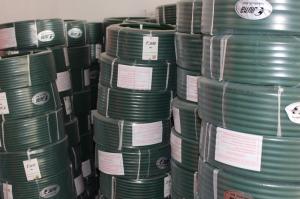

Green Round Belts Polyurethane Drive Belt Transmission ROHS Approved
Specifications
PU round belt
hardness:80A-95A
color: orange or green
Dia:2mm-20mm
Stretching rate:1.5-3%
PU round belt
hardness:80A-95A
color: orange or green( smooth round belt and rough round belt)
Dia:2mm-20mm
Stretching rate:1.5-3%
Material: polyurethane
(1) Thermoplastic polyurethane material, easy to be melted jointed
(2) Reinforced by Polyester Cord or Steel Cord
(3) Temperature range -35°C - +75°C
(4) Shore A hardness range 45A - 90A
(5) With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
| Items No. φ | least radius of gyration | stretch rate | Maximum tensile rate | Hardness | length of rolled | | Dia. (mm) | In | mm | Stretching rate | Kg | Lbs | Hardness (A) | Roll (m) | | 2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 90 | 400 m | | 3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 m | | 4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 85 | 200 m | | 15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 85 | 30 m | | 18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 85 | 30 m | | 20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 85 | 30 m | |
Products introduction:
Urethane round belts are elastomeric belts for power transmission application.
Having most metric sizes (2mm to 20mm) and standard O-ring sizes.
Polyether and Polyurethane round belts have best resilience of any elastic material.
Polyester product has good wear resistance, its wear resistance is 3.5 times of common plastic
and rubber.
Adopt the new polyurethane raw materials imported from Taiwan, with the most advanced equipment and technology, interface and firm, PU round belt surface spectral surface and rough surface, PU round belt main transmission and transmission line effect, wear-resisting, non-toxic, corrosion resistance, resistance to bend, can fast welding, etc. Widely used in construction ceramics, tiles, packaging machinery, paper making, printing, textile printing and dyeing, glass, industrial sewing machines, food and other industries.
Specification: 2mm 3mm 4mm 5mm 6mm 7mm 8mm 10mm 12mm 15mm 18mm
Color:Red/Green/Orange
Matrial: PU
Style: Smooth/Rough
Advantages:
1.transmission and transmission line effect,
2.wear-resisting, non-toxic, corrosion resistance
3.resistance to bend, can fast welding.
Application: Widely used in construction ceramics, tiles, packaging machinery, paper making, printing, textile printing and dyeing, glass, industrial sewing machines, food and other industries.
Service commitment:
“ Quality for keeping going ,Credit to win the world”
Product Tags:
|
|

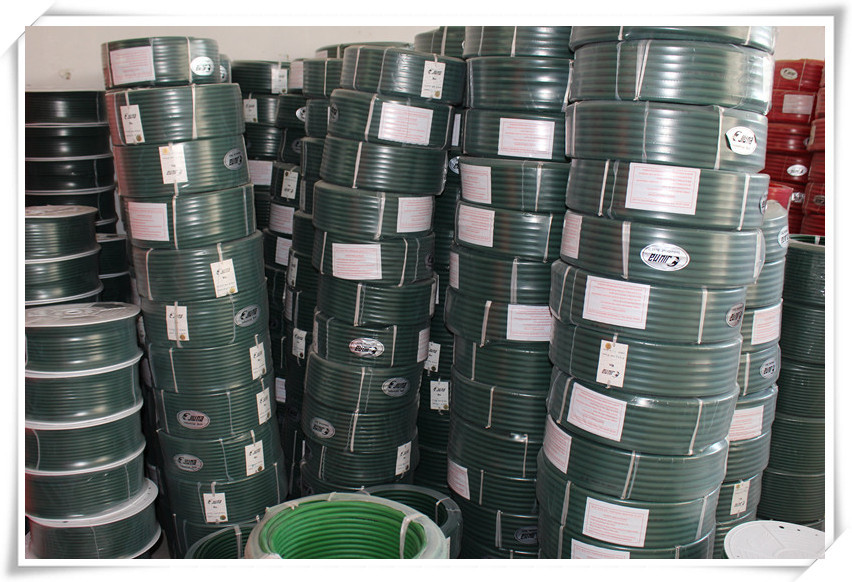

Green Round Belts Polyurethane Drive Belt Transmission ROHS Approved Images
|
