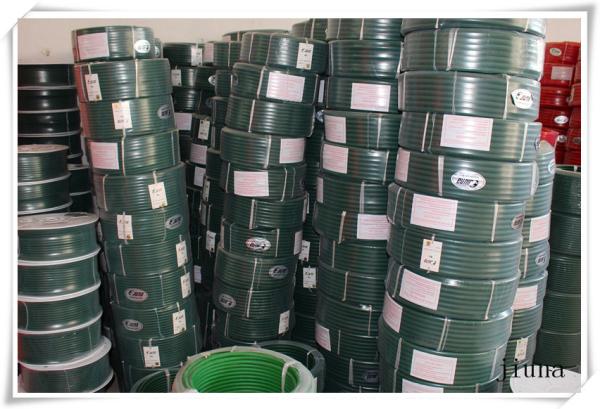

Green Diameter 3mm - 20mm Smooth Polyurethane Round Belt 85a Hardness

Name: Green Diameter 3mm 20mm Smooth Polyurethane Round Belt 85a Hardness
Brand: jiuna
Price: 1 USD

China Green Diameter 3mm - 20mm Smooth Polyurethane Round Belt 85a Hardness wholesale

Brand Name : jiuna

Model Number : Diameter 2mm-20mm

Certification : ROHS

Place of Origin : china

MOQ : 10 rolls

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100.000 meters per Month

Delivery Time : Within 5 working days After receipt of your deposit

Packaging Details : Inner packing is plastic film .outer packing is carton

hardness : 85A

color : green

heat-resistant : -30℃~80℃

Type : PU round belt

material : PU

Surface : rough

Contact Now

Green Diameter 3mm - 20mm Smooth Polyurethane Round Belt 85a Hardness
PU Round Belt(smooth/rough)
(1) Thermoplastic polyurethane material, easy to be melted jointed,100% pure polyurethane
(2) Reinforced by Polyester Cord or Steel Cord
(3) Temperature range -35 degree - 80 degree
(4) Shore A hardness range 80A - 98A
(5) With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6) Dia. is from 2mm to 30mm. Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.
Products introduction:
Urethane round belts are elastomeric belts for power transmission application.
Having most metric sizes (2mm to 20mm) and standard O-ring sizes.
Polyether and Polyurethane round belts have best resilience of any elastic material.
Polyester product has good wear resistance, its wear resistance is 3.5 times of common plastic and rubber.
Service commitment:

Items NO.Φ	Least radius of gyration		Stretching rate	Maximum tensile rate		Hardness	Length of rolled
DIA(mm)	In	mm	%	Kg	Lbs	Shore( A)	Length of rolled
2mm	0.79	20	1.5-3%	0.3	0.7	95	400
2.5mm	0.87	22	1.5-3%	0.4	0.9	95	400
3mm	0.98	25	1.5-3%	0.7	1.6	90	400
3.5mm	1.18	30	1.5-3%	0.95	2.1	90	400
4mm	1.38	35	1.5-3%	1.2	2.7	90	200
5mm	1.57	40	1.5-3%	2.0	4.3	90	100
6mm	1.97	50	1.5-3%	3.2	7.0	90	100
7mm	2.17	55	1.5-3%	4.1	9.0	90	100
8mm	2.56	65	1.5-3%	5.0	11.0	90	100
9mm	2.95	75	1.5-3%	6.8	15.0	90	50
10mm	2.95	75	1.5-3%	7.7	17.0	90	50
12mm	3.94	100	1.5-3%	12.2	27.0	90	30
15mm	4.72	120	1.5-3%	17.7	39.0	90	30
18mm	5.71	145	1.5-3%	25.4	56.0	90	30
20mm	6.30	160	1.5-3%	31.3	69.0	90	30
