Environmental Pu Converyor Round Belt 10mm Hardness 85A for Industry

Name: Environmental Pu Converyor Round Belt 10mm Hardness 85A for Industry
Brand: jiuna
Price: 1 USD

China Environmental Pu Converyor Round Belt 10mm Hardness 85A for Industry wholesale

Brand Name : jiuna

Model Number : Diameter 2mm-20mm

Certification : ROHS

Place of Origin : china

MOQ : 10 rolls

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100.000 meters per Month

Delivery Time : Within 5 working days After receipt of your deposit

Packaging Details : Inner packing is plastic film .outer packing is carton

hardness : 85A

color : green

stretching rate : 1.5-3%

Type : PU round belt

material : PU

length : 400m/roll 300m/roll 200m/roll 100m/roll 30m/roll

ensile Strength : 55N/mm2

Main function : Drive,transmission,

Contact Now

Industrial 12mm Polyurethane Round Belt Orange or Green for Packing Machine

Products introduction:
Urethane round belts are elastomeric belts for power transmission application.
Having most metric sizes (2mm to 20mm) and standard O-ring sizes.
Polyether and Polyurethane round belts have best resilience of any elastic material.
Polyester product has good wear resistance, its wear resistance is 3.5 times of common plastic and rubber.

Features:
Outstanding abrasion resistance
High tensile and tear strength
Resistance to oils, fuels,and oxygen
Good weatherability and high impact resistance
Low compression set

Application:
Newspaper conveying,
Packing machines,
Ceramic and stoneware processing plants,
Floor and roof tiles conveying,
Wood Working machineries,
Textile machines,
Paper industry machines,
Food grading machines, other food processing machines.

Items NO.Φ	Least radius of gyration		Stretching rate	Maximum tensile rate		Hardness	Length of rolled
DIA(mm)	In	mm	%	Kg	Lbs	Shore( A)	Length of rolled ( m )
2mm	0.79	20	1.5-3%	0.3	0.7	95	400
2.5mm	0.87	22	1.5-3%	0.4	0.9	95	400
3mm	0.98	25	1.5-3%	0.7	1.6	90	400
3.5mm	1.18	30	1.5-3%	0.95	2.1	90	400
4mm	1.38	35	1.5-3%	1.2	2.7	90	200
5mm	1.57	40	1.5-3%	2.0	4.3	90	100
6mm	1.97	50	1.5-3%	3.2	7.0	90	100
7mm	2.17	55	1.5-3%	4.1	9.0	90	100
8mm	2.56	65	1.5-3%	5.0	11.0	90	100
9mm	2.95	75	1.5-3%	6.8	15.0	90	50
10mm	2.95	75	1.5-3%	7.7	17.0	90	50
12mm	3.94	100	1.5-3%	12.2	27.0	90	30
15mm	4.72	120	1.5-3%	17.7	39.0	90	30
18mm	5.71	145	1.5-3%	25.4	56.0	90	30
20mm	6.30	160	1.5-3%	31.3	69.0	90	30

Service commitment:
“Quality for keeping going ,Credit to win the world”

Environmental Pu Converyor Round Belt 10mm Hardness 85A for Industry

Product Tags:

pu round belt

green round belt

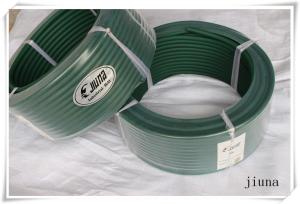

Environmental Pu Converyor Round Belt 10mm Hardness 85A for Industry Images
