Smooth Round Urethane Round Belting wear-resistance or Ceramic

Name: Smooth Round Urethane Round Belting wearresistance or Ceramic
Brand: Jiuna
Price: 1 USD

China Smooth Round Urethane Round Belting wear-resistance or Ceramic wholesale

Brand Name : Jiuna

Model Number : Diameter 3 ~20 mm

Certification : ROHS

Place of Origin : China

MOQ : 10rolls

Payment Terms : T/T, 50% payment in advance ,50% balance before shipment

Supply Ability : 96.000 meters per Month

Delivery Time : Within 7 working days After receipt of your deposit

Packaging Details : Inner packing is plastic film .outer packing is carton .

Factory : wuxi city

Export port : shanghai port

material : PU ,TPU

type : PU round belt

surface : smooth

Model NO : Dia. 2mm to 30mm

Hardness : 90A

Export Markets : Global

Contact Now

Smooth Round Urethane Round Belting wear-resistance or Ceramic
Product Description :

PU Round Belt(smooth/rough)
(1)Thermoplastic polyurethane material, easy to be melted jointed,100% pure polyurethane
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35 degree - 80 degree
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6) Dia. is from 2mm to 30mm. Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used widely.

Polyurethane belting of introduction:

Special color round belt can be custom-made ,
Yellow and blue pearl round belt applied to sports leisure fitness industrial like skipping rope.
Urethane round belts are elastomeric belts for power transmission application.
Having most metric sizes (2mm to 20mm) and standard O-ring sizes.
Polyether and Polyurethane round belts have best resilience of any elastic material.Polyester product

Items NO.Φ	Least radius of gyration		Stretching rate	Maximum tensile rate		Hardness	Length of rolled
DIA(mm)	In	mm	%	Kg	Lbs	Shore( A)	Length of rolled ( m )
2mm	0.79	20	1.5-3%	0.3	0.7	95	400
2.5mm	0.87	22	1.5-3%	0.4	0.9	95	400
3mm	0.98	25	1.5-3%	0.7	1.6	90	400
3.5mm	1.18	30	1.5-3%	0.95	2.1	90	400
4mm	1.38	35	1.5-3%	1.2	2.7	90	200
5mm	1.57	40	1.5-3%	2.0	4.3	90	100
6mm	1.97	50	1.5-3%	3.2	7.0	90	100
7mm	2.17	55	1.5-3%	4.1	9.0	90	100
8mm	2.56	65	1.5-3%	5.0	11.0	90	100
9mm	2.95	75	1.5-3%	6.8	15.0	90	50
10mm	2.95	75	1.5-3%	7.7	17.0	90	50
12mm	3.94	100	1.5-3%	12.2	27.0	90	30
15mm	4.72	120	1.5-3%	17.7	39.0	90	30
18mm	5.71	145	1.5-3%	25.4	56.0	90	30
20mm	6.30	160	1.5-3%	31.3	69.0	90	30

Service commitment:
“Quality for keeping going ,Credit to win the world”
Smooth Round Urethane Round Belting wear-resistance or Ceramic

Product Tags:

pu extruded belt

green round belt

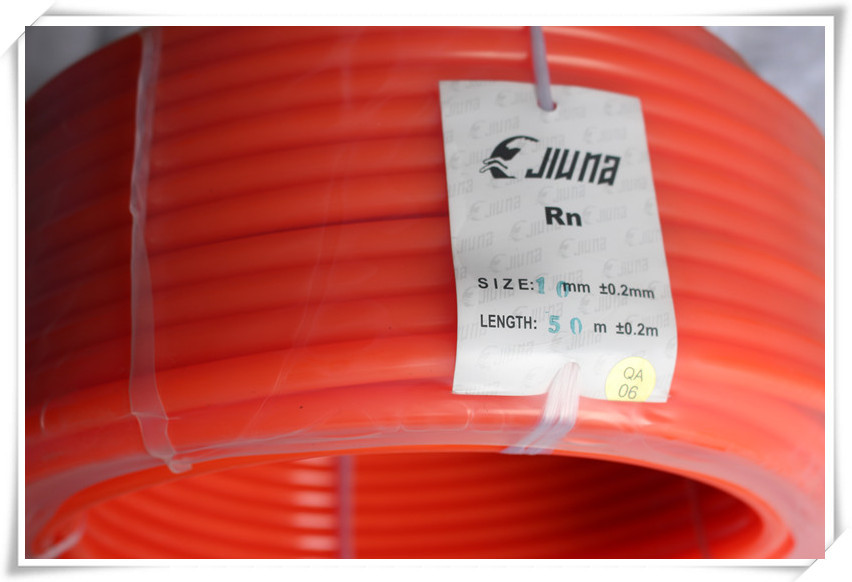

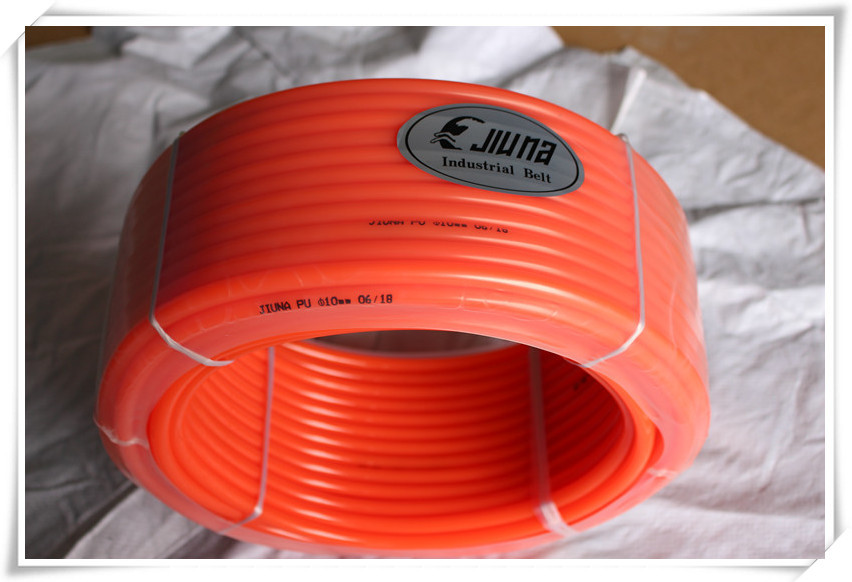

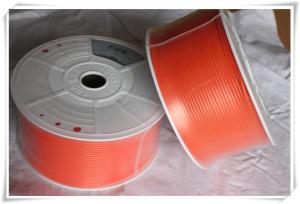

Smooth Round Urethane Round Belting wear-resistance or Ceramic Images
