Red Smooth Polyurethane Round Belt Polishing Line Conveyor Line

Name: Red Smooth Polyurethane Round Belt Polishing Line Conveyor Line
Brand: JIUNA
Price: 1 USD

China Red Smooth Polyurethane Round Belt Polishing Line Conveyor Line wholesale

Brand Name : JIUNA

Model Number : Dia3m-20 mm

Certification : ROHS

Place of Origin : china

MOQ : 10 rolls

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 96.000 meters per Month

Delivery Time : Within 5 working days After receipt of your deposit

Packaging Details : Inner packing is plastic film .outer packing is carton

material : pu

hardness : 85A

color : green orange red

export port : shanghai

longth : 30m /roll 50m /roll 100m / roll 200m/roll

radius of gyration : 20mm-160mm

Contact Now

Transmission PU Rough Round Belt ; Polyurethane Round Belt, PU Smooth Round Belt, PU Rough Round Belt
Details:
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics.
Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries,
especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness.
They are used widely.
PU Round belt with reinforcement

We offer a complete line of Polyester and Polyurethane Round belts for use in transmission industrial machines. And In the conveyance of products ranging from transport machine,conveyor machine to glass and tile. Round belts are available with smooth and rough surfaces and reinforced with polyester, nylon or fibers. Also can welding belt to O-ring . supply the connecting tools & Accessories for polyurethane belts , include clamp ,the Electric Iron and Knife , Connecting methods is hotpress welding , overlap welding .
The very elastic and flexible material PU 85 A ~90 A is particularly suitable for lead in conveyors and vertical shafts .

Items NO.Φ	Least radius of gyration		Stretching rate	Maximum tensile rate		Hardness	Length of rolled
DIA(mm)	In	mm	%	Kg	Lbs	Shore( A)	Length of rolled
2mm	0.79	20	1.5-3%	0.3	0.7	95	400
2.5mm	0.87	22	1.5-3%	0.4	0.9	95	400
3mm	0.98	25	1.5-3%	0.7	1.6	90	400
3.5mm	1.18	30	1.5-3%	0.95	2.1	90	400
4mm	1.38	35	1.5-3%	1.2	2.7	90	200
5mm	1.57	40	1.5-3%	2.0	4.3	90	100
6mm	1.97	50	1.5-3%	3.2	7.0	90	100
7mm	2.17	55	1.5-3%	4.1	9.0	90	100
8mm	2.56	65	1.5-3%	5.0	11.0	90	100
9mm	2.95	75	1.5-3%	6.8	15.0	90	50
10mm	2.95	75	1.5-3%	7.7	17.0	90	50
12mm	3.94	100	1.5-3%	12.2	27.0	90	30
15mm	4.72	120	1.5-3%	17.7	39.0	90	30
18mm	5.71	145	1.5-3%	25.4	56.0	90	30
20mm	6.30	160	1.5-3%	31.3	69.0	90	3

Red Smooth Polyurethane Round Belt Polishing Line Conveyor Line

Product Tags:

pu round belt

pu extruded belt

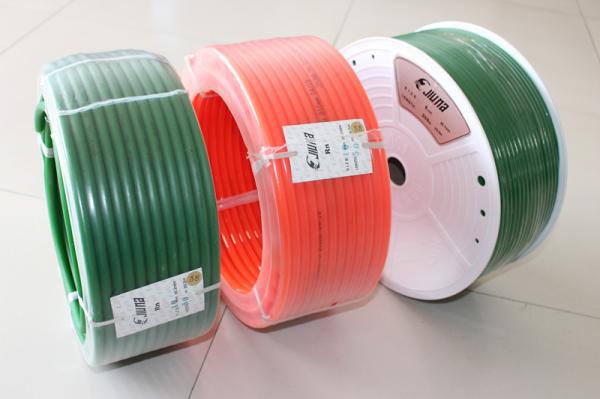

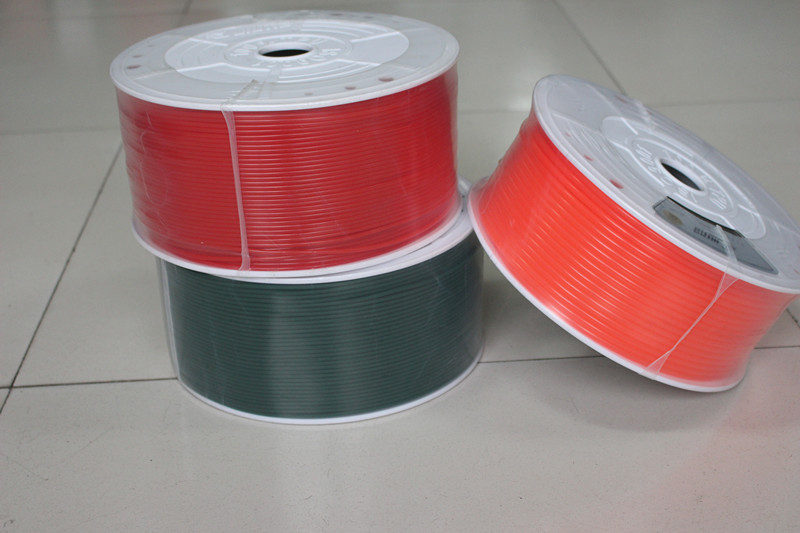

Red Smooth Polyurethane Round Belt Polishing Line Conveyor Line Images
