High Impact Resistance polyurethane Flat Belt Drive transmission
| Items No. φ | least radius of gyration | stretch rate | Maximum tensile rate | Hardness | length of rolled |
| DIA (mm) | In | mm | Stretching rate | Kg | Lbs | Hardness (A) | Roll (m) |
| 4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 85 | 200 |
| 5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 85 | 100 |
| 6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 85 | 100 |
| 7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 85 | 100 |
| 8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 85 | 100 |
| 9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 85 | 50 |
| 10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 85 | 50 |
| 12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 85 | 30 |
| 15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 85 | 30 |
| 18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 85 | 30 |
| 20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 85 | 30 |
Our company specializing in the production of PU round belt,V belt,non-slip belt,wire clip,clip wire core,PU guide, stop,package edge,skirt,scraping gum,rubber roller,wheel and all kinds of non-standard special polyurethane products.TPU proudcts characteristic and main performance are: easy adhesion,good abrasion resistance,tear resistance,bending strength,tensile strength and breaking elongation,heat-resistant moderate (-30 ℃~80℃ ) ,hardness shaw (70a~98a). Smooth round belt, V belt surface finish is good, bright color with rough surface. Uniform praticles,comfortable feel.cpu pouring product characteristics and main performance are: wear-resisting.oil,acid and alkali resistance,solvent resistance,ozone resistance,aging resistance,environmental protection,non-toxic,the main products are rubber roller plastic bags,plastic core package iron roller,printing and dyeing,etc.,and can undertake various non-standard parts processing,customized non-standard products can be according to the drawing,plastic,iron core production in a body. TPU products are mainly used in textile,
tobacco,packaging,printing,machinery,electronics,glass,ceramics and other machinery and equipment industry,especially suitable for ceramic industry of the spool, polishing line, such as the main plays a driving, conveying,sealing and shock absorption,decoration and so on.
Service commitment:
“Quality for keeping going ,Credit to win the world”
Product Tags:
|
|

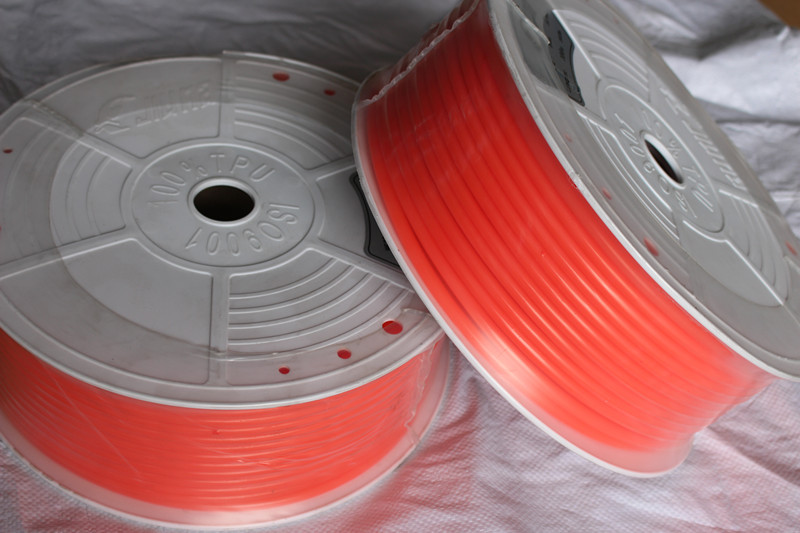

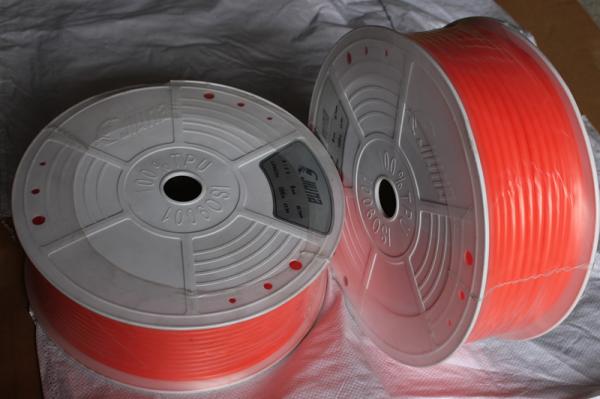

High Impact Resistance polyurethane Flat Belt Drive transmission Images
|
