Industrial transmission 7mm Diameter Wear Resistant PU Polyurethane round belt
| Items NO.Φ | Least radius of gyration | Stretching rate | Maximum tensile rate | Hardness | Length of rolled |
| DIA(mm) | In | mm | % | Kg | Lbs | Shore( A) | Length of rolled |
| 2mm | 0.79 | 20 | 1.5-3% | 0.3 | 0.7 | 95 | 400 |
| 2.5mm | 0.87 | 22 | 1.5-3% | 0.4 | 0.9 | 95 | 400 |
| 3mm | 0.98 | 25 | 1.5-3% | 0.7 | 1.6 | 90 | 400 |
| 3.5mm | 1.18 | 30 | 1.5-3% | 0.95 | 2.1 | 90 | 400 |
| 4mm | 1.38 | 35 | 1.5-3% | 1.2 | 2.7 | 90 | 200 |
| 5mm | 1.57 | 40 | 1.5-3% | 2.0 | 4.3 | 90 | 100 |
| 6mm | 1.97 | 50 | 1.5-3% | 3.2 | 7.0 | 90 | 100 |
| 7mm | 2.17 | 55 | 1.5-3% | 4.1 | 9.0 | 90 | 100 |
| 8mm | 2.56 | 65 | 1.5-3% | 5.0 | 11.0 | 90 | 100 |
| 9mm | 2.95 | 75 | 1.5-3% | 6.8 | 15.0 | 90 | 50 |
| 10mm | 2.95 | 75 | 1.5-3% | 7.7 | 17.0 | 90 | 50 |
| 12mm | 3.94 | 100 | 1.5-3% | 12.2 | 27.0 | 90 | 30 |
| 15mm | 4.72 | 120 | 1.5-3% | 17.7 | 39.0 | 90 | 30 |
| 18mm | 5.71 | 145 | 1.5-3% | 25.4 | 56.0 | 90 | 30 |
| 20mm | 6.30 | 160 | 1.5-3% | 31.3 | 69.0 | 90 | 30 |
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
(6)Round Belt:
Round Belt Dia. is from 2mm to 30mm
Smooth Belt with good surface finish; Rough belt with even surface roughness. They are used
(1)Thermoplastic polyurethane material, easy to be melted jointed
(2)Reinforced by Polyester Cord or Steel Cord
(3)Temperature range -35°C - 80°C
(4)Shore A hardness range 80A - 98A
(5)With excellent resistance to flex, abrasion resistance, easy jointed and other characteristics. Widely used in textile, packaging, printing, machinery, electronic, glass, chemicals, ceramics and other industries, especially in the ceramic industry, widely used in the facilities line the glaze, polishing lines, and transmission line.
Service commitment:
“Quality for keeping going ,Credit to win the world”
Product Tags:
|
|

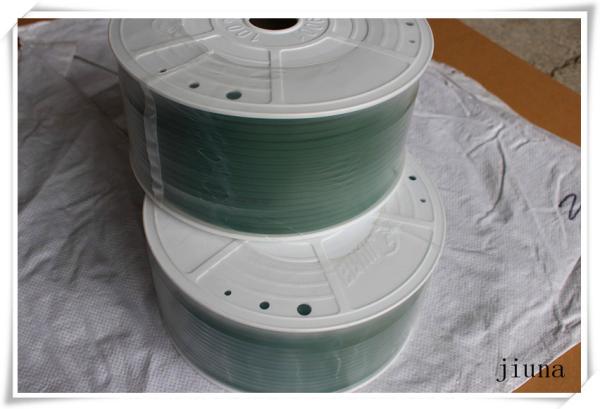

Industrial transmission 7mm Diameter Wear Resistant PU Polyurethane round belt Images
|
